Zebra ZM400 * Thermisch Transfer Label Printer 203DPI - USB + RJ-45 + PEEL

Zebra ZM400 Barcode Label Printer INCL. PEEL Off - Professionele Thermische Printer 203Dpi USB + Network Interface

€ 525,00 *
Price per stuk



Quantity:
Order

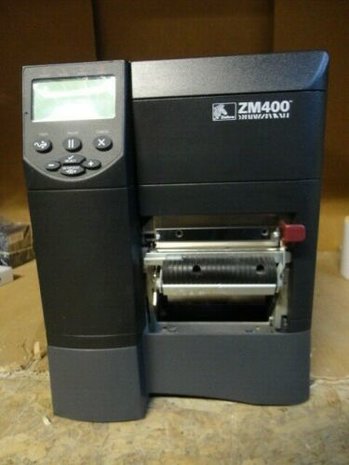

Zebra ZM400 Barcode Label Printer met PEEL Functie

Professionele Thermische Printer:
Resolutie: 203Dpi
Toepassing: Barcodes - Labels - Sticker
Conditie:  Occasion

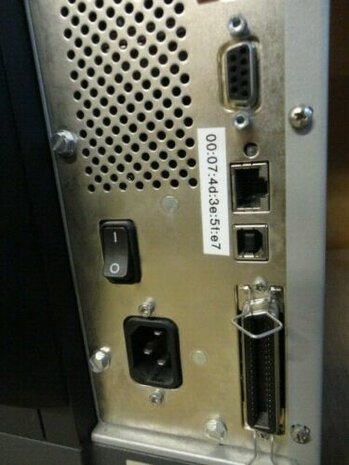

Aansluiting: USB / Parallel / Serieel / RJ-45 Netwerk
Maximale Media Breedte: 10,4cm
Direct Thermisch en Thermisch Transfer

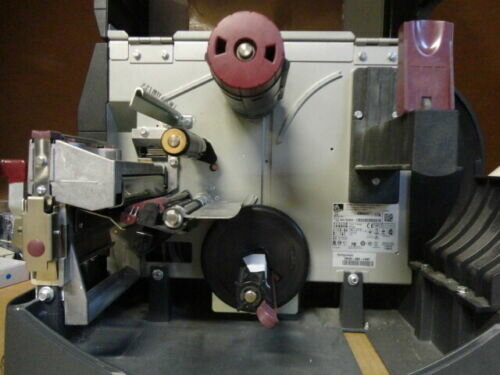

Inclusief geinstalleerd Peel Off Function



Inclusief:

* Windows Driver
* Zebra Label Design Software
* USB Printer Kabel




Zebra ZM400 Thermal-Transfer Label Printer Specifications


Standard Features
Thermal transfer and direct thermal operating modes (can only use one mode at a time)
Die-cast aluminum base, frame, and printhead mechanism
Metal media cover with large clear window
16 MB DRAM, 8MB Flash
RS-232C Serial Interface
High Speed, IEEE 1284, Bi-Directional Parallel Interface
USB 2.0
Transmissive and reflective media sensors
Multi-lingual backlit 240x128 pixel graphic display
Color-coded operator cues
RFID Ready
7 bitmapped and 1 scalable font (CG Triumvarate Bold Condensed)
32-bit processor
Auto-calibration
Auto detectable (90V - 265V) power supply
Element Energy Equalizer™ (E3®) (for print head energy control)
Real Time Clock
Unicode™ - Compliant
Quick change printhead and platen
Charcoal gray form design (for improved smudge resistance)
ZPL® or ZPLII® (Zebra Programming Language®)

Printer Specifications

Resolution
300 dpi (12 dots/mm)




Memory
16 MB DRAM
8 MB Flash
64 MB Factory-Installed On-Board Flash (optional)

Print width
4.09" (104 mm)

Print length
Length with 300 dpi: 73" (1,854mm)




Print speed
300 dpi - 8" (203 mm)/sec

Media sensors
Reflective
Transmissive

Media Characteristics

Maximum label and liner width
4.5" (114 mm) - tear & cutter
4.25" (108mm) - peel & rewind

Minimum label and liner width
1" (25 mm) - tear & cutter, peel & rewind

Maximum label and liner length
39" (991 mm)

Maximum roll diameter
8" (203 mm)

Core diameter
3" (76 mm)

Media thickness
.0023" (.058 mm) to .010" (0.25 mm)

Media types
Black mark, continuous, die-cut, fanfold, notch, perforated, tag stock

Ribbon Characteristics

Outside diameter
3.2" (81.3 mm)

Standard length
1476' (450 m) or 984' (300 m)

Ratio
3:1 media roll to ribbon ratio

Ribbon width
2" (51 mm) to 4.33" (110 mm)

Ribbon setup
Ribbon wound ink-side out or ribbon wound ink-side in (configurable one or the other, but not both)

ID Core
1.0" (25.4 mm)

Operating Characteristics

Operating temperature
TT: Operating temperature 40° F (5° C) to 104° F (40° C) Thermal transfer
DT: Operating temperature 32° F (0° C) to 104° F (40° C) Direct thermal

Storage temperatures
-40° F (-40° C) to 140° F (60° C)

Operating humidity
20-85% non-condensing

Storage humidity
5/85% non-condensing

Electrical
Universal auto-detectable (PFC-compliant) power supply 90-265 VAC

Agency approvals
• IEC 60950-1 EN 55022 Class B
• EN 55024
• EN 61000-3-2
• EN 61000-3-3

Physical Characteristics
